PRESSURE REGULATORS

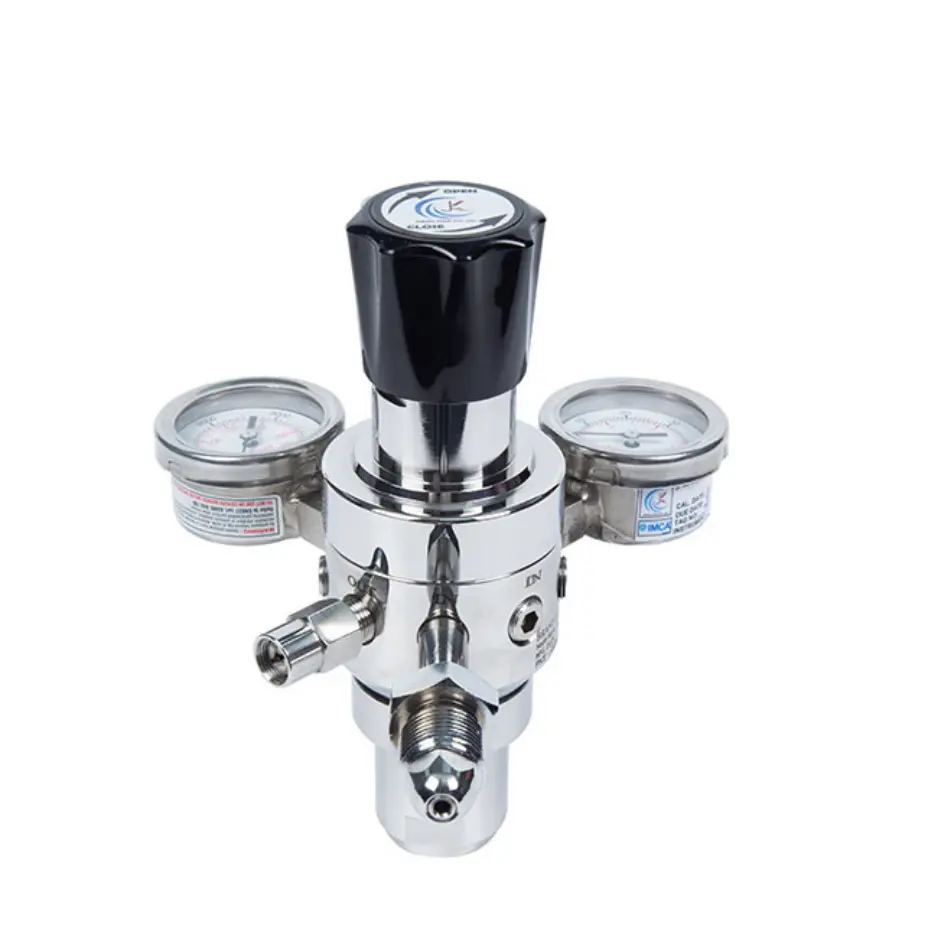

8-Port Body Pressure Regulator
J. K. Subsea Engineering Pvt. Ltd. is a trusted 8-port body pressure regulator manufacturer and supplier, building precision multi-port gas regulators for laboratory, industrial, and specialty gas systems that need reliable, accurate pressure control across multiple gas types. Machined from SS316 stainless steel and fitted with a stainless steel diaphragm, this 8-port pressure regulator is designed to deliver consistent, contamination-free regulation for demanding gas handling applications, with a dedicated model available for each gas type rather than a single generic build.
What is an 8-Port Body Pressure Regulator?
An 8-port body pressure regulator is a multi-port gas pressure control device built with eight port connections on a single regulator body, allowing it to support more complex gas system layouts than a standard two or three port regulator. The extra ports give system designers flexibility to route gauges, sampling lines, purge connections, and downstream equipment directly off the regulator body itself, instead of adding separate fittings and tees downstream. This matters most in laboratory and analytical gas systems, where a sampling line, a calibration line, and a supply line often need to branch off the same regulated gas source without introducing extra joints that raise contamination risk. Built in SS316 stainless steel with a stainless steel diaphragm and PTFE valve seat, our 8-port pressure regulator is designed specifically to minimize contamination while accurately regulating corrosive, non-corrosive, or toxic gases.
Key Features of 8-Port Body Pressure Regulator
Our 8-port body pressure regulator, also used as a multi-gas manifold regulator, is built for accurate, contamination-controlled performance across laboratory and industrial gas applications.
- 8-Port Stainless Steel Regulator Design: Eight ports on a single regulator body simplify complex gas system layouts without extra fittings.
- Accurate Pressure Control and Monitoring: Delivers stable, precise outlet pressure suited to sensitive analytical and process applications.
- SS316 Corrosion-Resistant Construction: Machined from SS316 stainless steel for long-term durability across a wide range of gas types.
- Stainless Steel Diaphragm: Reduces contamination risk from diffusion or outgassing compared to non-metal diaphragm materials.
- PTFE Valve Seat: Chemically resistant seat material suited to corrosive, non-corrosive, and toxic gas service.
- Hand Operated Fine Control Knob: Threaded bonnet design for precise, repeatable pressure adjustment.
- Gas-Specific Model Options: Available as a dedicated model for each gas type, rather than one generic regulator across all gases.
- Compact in Size: Fits into tight panel and installation layouts without sacrificing port capacity.
- Contamination-Controlled Regulation: Designed to minimize contamination while providing accurate regulation of any corrosive, non-corrosive, or toxic gas.
Applications of 8-Port Body Pressure Regulator
Our 8-port body pressure regulator is used wherever laboratory and point of use gas systems need precise, contamination-controlled pressure regulation.
Laboratory and Point of Use Gas Systems: Delivers accurate, stable pressure directly at the point where gas is consumed in lab environments.
Sampling Systems: Supports gas sampling lines that need a clean, contamination-free pressure source.
Zero, Span, and Calibration Analyzer Gas: Regulates calibration gases used to zero and span analytical instruments accurately.
Multi-Line Gas Distribution: The 8-port design supports multiple downstream connections from a single regulator body.
Specialty and Corrosive Gas Handling: SS316 construction and PTFE seat support safe regulation of aggressive gas types.
Technical Specifications of 8-Port Body Pressure Regulator
Our 8-port body pressure regulator is built in SS316 stainless steel to IS 6901:2009.
| Equipment | Specification |
|---|---|
| Product Type | Regulator (8-Port Body Regulator) |
| Material | Stainless Steel |
| Grade | SS 316 |
| Maximum Inlet Pressure | 280 Bar |
| Maximum Outlet Pressure | 16 Bar |
| Flow Capacity | Cv: 0.02 |
| Temperature Range | -30°C to 74°C |
| Port Configuration | 8 Port |
| Diaphragm Type | Stainless Steel Diaphragm |
| Valve Seat | PTFE |
| Knob Type | Hand operated, fine control threaded bonnet |
| For full details, download the complete technical data sheet. | |
8-Port Body Regulator Model Identification
The 8-port body pressure regulator is available
as a dedicated model built for each specific gas type, so the
correct materials and seals are matched to your application
from the start.
| Gas Type | Model No. |
|---|---|
| Air | JK-12-A |
| Oxygen | JK-12-B |
| Nitrogen Dioxide | JK-12-C |
| Helium | JK-12-D |
| Mix Gas | JK-12-E |
| Hydrogen | JK-12-F |
| Carbon Dioxide | JK-12-G |
| Nitrogen | JK-12-H |
| Argon | JK-12-I |
Why Choose J. K. Subsea Engineering as Your Pressure Regulator Manufacturer
J. K. Subsea Engineering Pvt. Ltd. is a trusted pressure regulator manufacturer and supplier, building precision gas control equipment for laboratory, industrial, and specialty gas applications.
- Gas-Specific Engineering: Dedicated model numbers for each gas type, rather than a one-size-fits-all regulator.
- Multi-Port Flexibility: 8-port design supports complex sampling, calibration, and distribution setups from a single regulator.
- Contamination-Focused Design: Stainless steel diaphragm and PTFE seat built to minimize contamination risk.
- After-Sales Support: Ongoing technical support for laboratory and industrial clients worldwide.
- Wide Product Range: We also manufacture and supply double stage high pressure regulators, square body type regulators, gas manifolds, changeover systems, and diving fittings and valves.
Wide Product Range: We also manufacture and supply SRP containers, machinery containers, diver air panels, scuba replacement packages, and diving fittings & valves, supplied worldwide.
Technical Specification for 8-Port Body Pressure Regulator
| Equipment | Specification |
|---|---|
| Product Type | Regulator (8-Port Body Regulator) |
| Material | Stainless Steel |
| Grade | SS 316 |
| Maximum Inlet Pressure | 280 Bar |
| Maximum Outlet Pressure | 16 Bar |
| Locking Pressure | 12 Bar |
| Flow Capacity | Cv: 0.02 |
| Temperature Range | -30°C to 74°C |
| Maximum Operating Torque | 30 in-lbs (3.4 Nm) |
| Port Configuration | 8 Port as per IS Standard |
| Diaphragm Type | Stainless Steel Diaphragm |
| Valve Seat | PTFE |
| Knob Type | Hand Operated, Fine Control Threaded Type Bonnet |
| Standard | IS 6901:2009 |
Features & Benefits
- Compact in size
- Designed to minimize contamination and provide accurate regulations of any corrosive, noncorrosive, or Toxic gas.
Applications
- Laboratory and point of use gas system.
- Sampling system, zero, span and calibration Analyzer gas
8-Port Body Regulator Model Identification
| Gas Type | Model No. |
|---|---|
| Air | JK-12-A |
| Oxygen | JK-12-B |
| Nitrogen Dioxide | JK-12-C |
| Helium | JK-12-D |
| Mix Gas | JK-12-E |
| Hydrogen | JK-12-F |
| Carbon Dioxide | JK-12-G |
| Nitrogen | JK-12-H |
| Argon | JK-12-I |
Frequently Asked Questions About 8-Port Body Pressure Regulator
Related Products
Get In Touch
Get Your 8-Port Body Pressure Regulator Quote Today
Need precise, contamination-controlled pressure regulation for a laboratory or multi-line gas system? Talk to our team at J. K. Subsea Engineering Pvt. Ltd. for pricing on our 8-Port Body Pressure Regulator, gas-specific model options, and delivery timelines.
