DIVING EQUIPMENTS

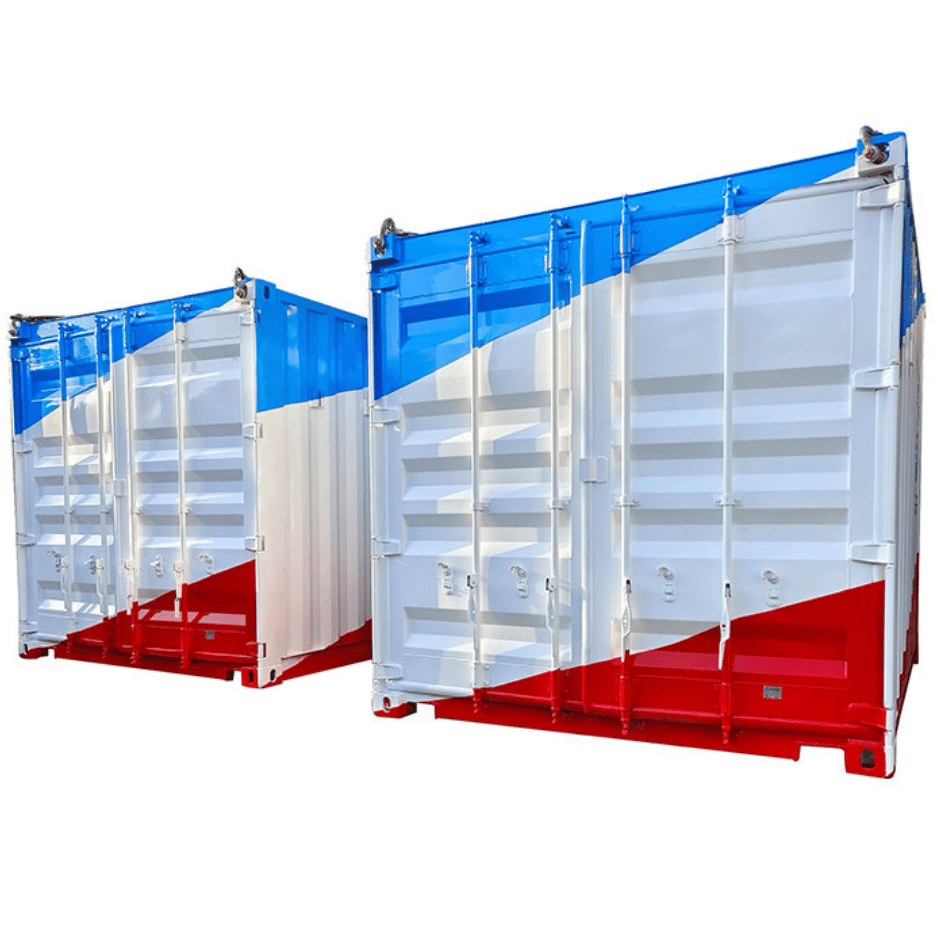

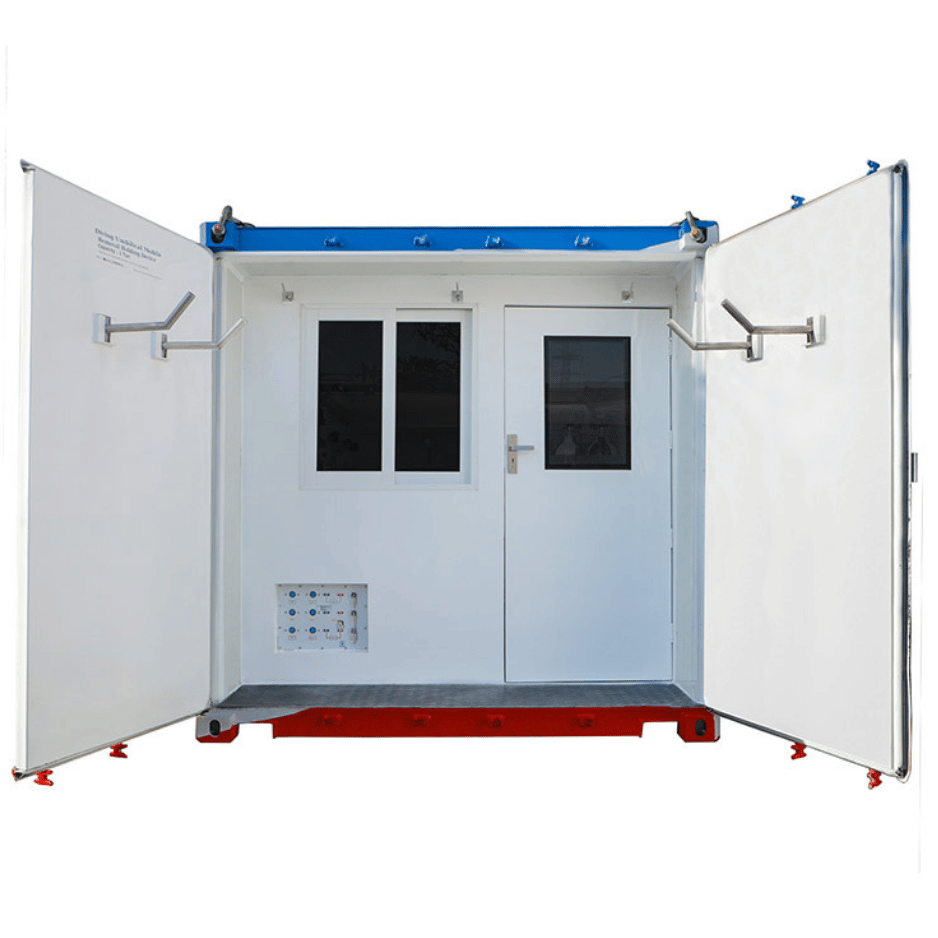

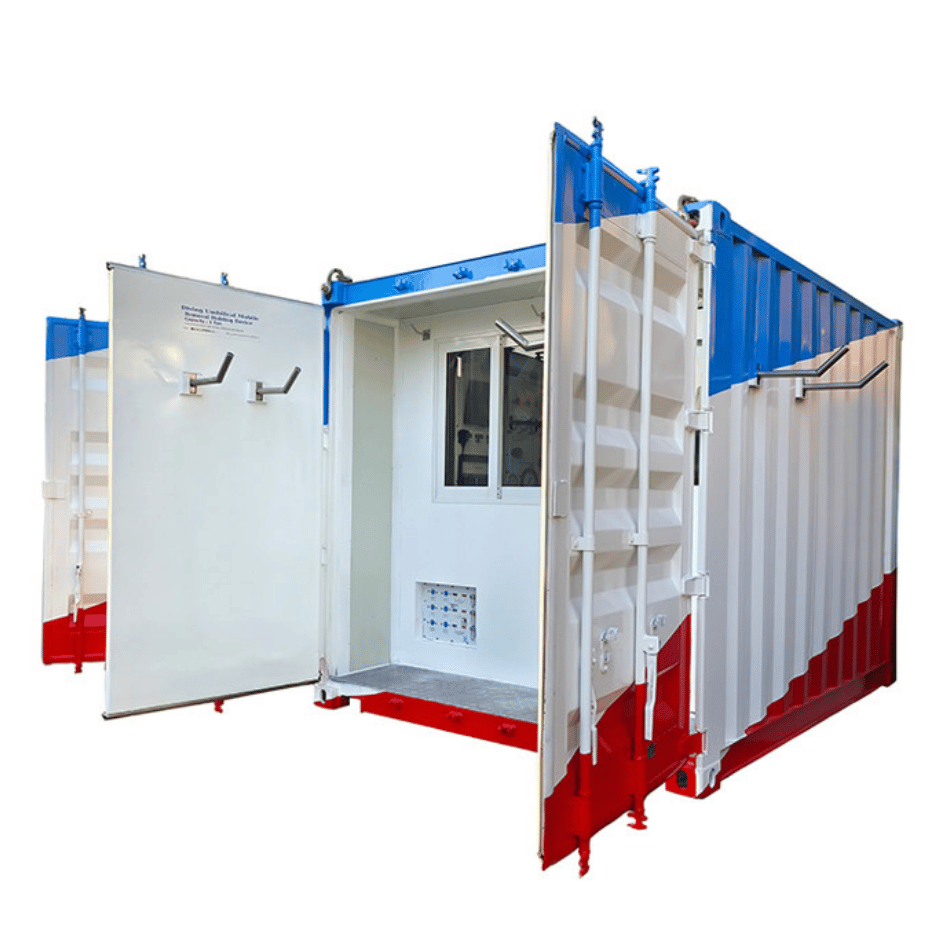

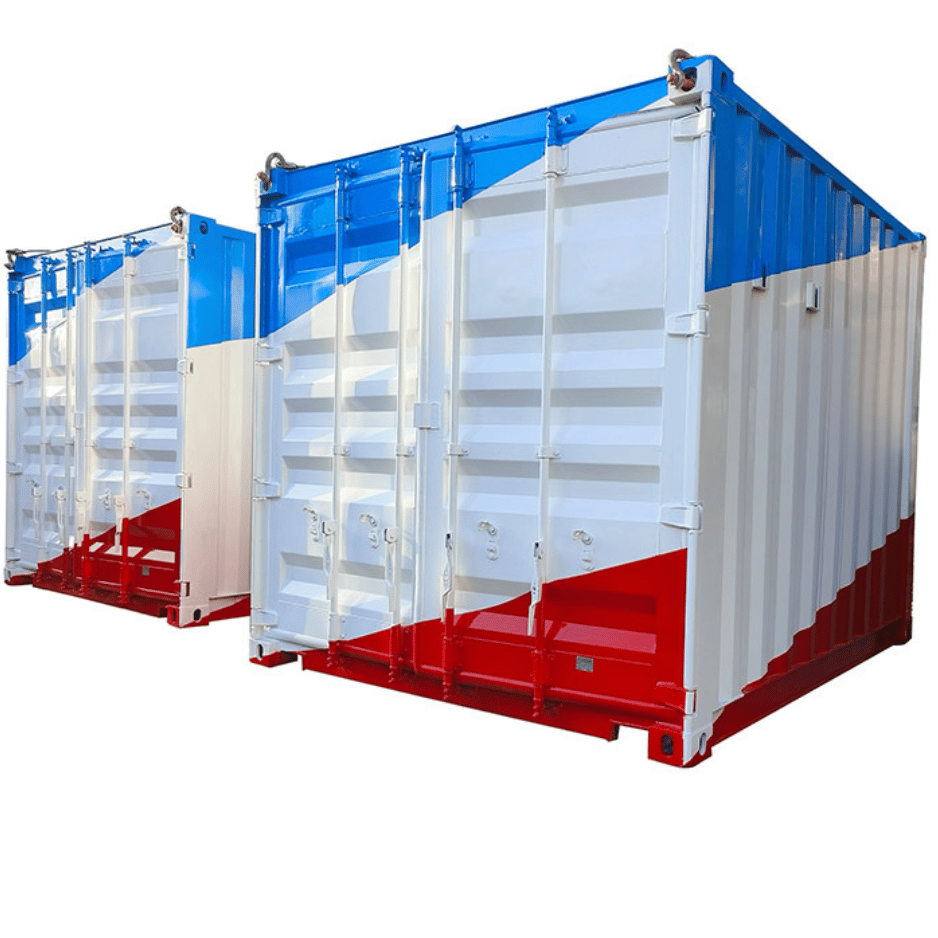

SRP Container
JK Subsea Engineering Pvt. Ltd. is a trusted Portable 10ft. SRP Container manufacturer and supplier, designing and manufacturing containerized diving support systems built compliant with IMCA D018 and D040 guidelines. It gives supervisors a comfortable, safe workspace equipped with a 3-Diver Air Panel, Breathing Air Cylinder Quads, and a human comfort system built for extended offshore use, making it a reliable containerized dive control room along with all the diver accessories including Diving helmet, Diving booty, Diving suits, Diving fins, Umbilical, Underwater camera, and Underwater light for commercial diving and subsea operations.
What's Included in the portable 10 ft. SRP Container
Our Portable 10ft. SRP Container is a complete Containerized dive support system, packed with the equipments that supervisors need in one workspace.
- Breathing Air Cylinder Quad: 9 -cylinder bank supplying air to the diver through diving panel
- 3-Diver Air Panel: IMCA D023 designed, D018 certified, also customizable 2 Diver Air Panel .
- Chamber Communication System: Amron radio for real-time diver-to-surface communication.
- High Definition Monitoring System: HD displays for continuous diver monitoring and DVR storage for real time recording..
- Human Comfort System: Built to keep supervisors comfortable during long offshore shifts.
- Color-Coded Diver Panels: D1, D2, D3 coding for fast, error-free identification.
- Diver Accessories: Diving suits, booty, fins, helmets, umbilical, underwater camera, underwater light.
Key Features of SRP Container
Our Portable 10ft. SRP container is engineered for safe, comfortable, and reliable diving control operations.
01. IMCA-Compliant Design: Built following IMCA D018 and D040 guidelines for diving plant and mobile/portable surface-supplied systems.
02. 3-Diver Air Panel: A 3-diver air panel manages high and low-pressure air lines, gauges, and gas analysis for up to three divers, customizable down to a 2-Diver Air Panel.
03. Breathing Air Cylinder Quad: A 9 -cylinder breathing air quad (3 for each diver ) with a high-pressure gas distribution panel supplies air to the diving panel
04. Chamber Communication System: An Amron radio built into the panel keeps divers connected to surface supervisors throughout operations
05. High Definition Monitoring System: Includes a DVR and HD displays for continuous visual monitoring of divers and storage of recorded data.
06. Human Comfort System: The container prioritizes comfort and ease of use for supervising personnel during long offshore shifts.
07. Color-Coded Diver Panels: Each diver panel is color coded (D1, D2, D3) for quick, error-free identification during operations.
Applications of Portable 10ft. SRP Container
Our Portable 10ft. SRP container supports commercial diving and offshore operations that need a self-contained, portable control environment.
Offshore Diving Support Vessels: Provides a dedicated control room for managing diver air supply and communication at sea.
Commercial Air Diving Operations: Supports 2 or 3-diver teams with a fully equipped air panel and cylinder quad.
Offshore Oil & Gas Projects: Used on platforms and support vessels for inspection and maintenance diving work.
Marine Construction & Salvage: Provides portable diving control for construction and salvage diving projects.
Diver Accessories: Diver Accessories includes diving suit. booty, fins, helmets.
Technical Specifications of SRP Container
Our SRP Container is built around a breathing air cylinder quad, a 3-Diver Air Panel, a diver communication system, and a complete diving set, all designed to IMCA standards.
| Specification | Detail |
|---|---|
| 3 Diver Air Panel | |
| Operating Depth | 0–50 MSW |
| High Pressure Line | 2 HP |
| Low Pressure Line | 1 LP |
| Analyzing System | O₂ Analyzer |
| Regulating Valve | Tescom 44-1313 Series |
| Depth Gauge | 0–70 MSW |
| Diver Communication System | |
| Make | Amron |
| Model | 2 Diver (2820A), 3 Diver (2830A) |
| Diving Set | |
| Diving Helmet | Kirby Morgan (KMB) |
| Diving Suit | Neoprene 3 mm Aeropec |
| Diving Booty | Aeropec |
| Diving Fins | Aeropec |
| Umbilical | 4 Core Fibron Make |
| Underwater Camera | JKSEPL, JK-UWC-300M |
| Underwater Light | JKSEPL, JK-UWL-300M |
Certifications & Standards for Portable 10ft. SRP Container Manufacturer
Our Portable 10ft SRP container is designed and manufactured to meet internationally recognized commercial diving standards. This includes IMCA D018 for the examination, testing, and certification of diving plant and systems, IMCA D040 for mobile and portable surface-supplied systems, and IMCA D023 compliance for the 3-Diver Air Panel design.
IMCA D018
Certified
IMCA D023
Certified
IMCA D040
Certified
Why Choose JK Subsea Engineering as Your Portable 10ft. SRP Container Manufacturer
JK Subsea Engineering Pvt. Ltd. is a trusted SRP container manufacturer and supplier, providing containerized diving support systems for commercial diving operations. Choosing the right SRP container manufacturer matters, since supervisors depend on a reliable, comfortable workspace to manage diver safety throughout the operation.
Experienced Manufacturer: A trusted SRP container manufacturer with proven engineering expertise in diving support systems.
IMCA Compliant Design: Built to IMCA D018, D040, and D023 guidelines for diving plant and panel systems.
Customizable Panels: 3-diver panels that can be configured down to 2-diver or mixed gas setups per client needs.
Comprehensive Cylinder Support: 8-cylinder breathing air quad supporting both diving panels and recompression chambers.
Human Comfort Focus: Designed for supervisor comfort and ease of use during long offshore operations.
Strong After-Sales Support: Ongoing technical support for offshore and subsea clients worldwide.
