Air Decompression Chamber Shell with Chamber Control Panel (TPl)
J. K. Subsea Engineering Pvt. Ltd. builds the Air Decompression Chamber Shell with Chamber Control Panel, Model No. JK-ADC-CCP, as a standalone decompression chamber meant to be saddle mounted directly onto a deck or fitted inside an existing enclosed room, rather than shipped inside a container. lt carries the same 60 inch twin lock chamber and control panel used across our decompression range, built to ASME, IMCA, PVHO and divine standards and rPt approved with a DNV stamped nameplate, giving operators with available deck space or an existing dive support room a lighter installation option than a full container build.
What is an Air Decompression Chamber Shell with Chamber Control Panel?
This is the same 60 inch twin lock decompression chamber found in our containerized systems, supplied on its own without a surrounding container. lt suits operators who already have deck space or a dedicated enclosed room and would rather mount the chamber directly than pay for housing they don’t need. The shell sits on a saddle mount base bolted to the deck or floor, with a NATO type mating front manway for compatibility with existing transfer equipment, and three viewports for direct visibility into the chamber. The shell is built in accordance with ASME PVHO, IMCA and Diving standards and accompained by DNV TPI approved drawings carries a DNV stamped nameplate once independent inspection is complete.
Key Features of the Air Decompression Chamber Shell
- lndependently lnspected Shell: A 60 inch twin lock chamber fabricared to ASME Sec Vlll Div. I and PVHO-I (2O22), verified against DNV TPI approved drawings and closed out with a DNV stamped nameplate.
- Built Around IMCA Guidelines: Follows IMCA DO]E for plant testing and IMCA DO23 for surface oriented air diving design, the same guidelines applied across our chamber range.

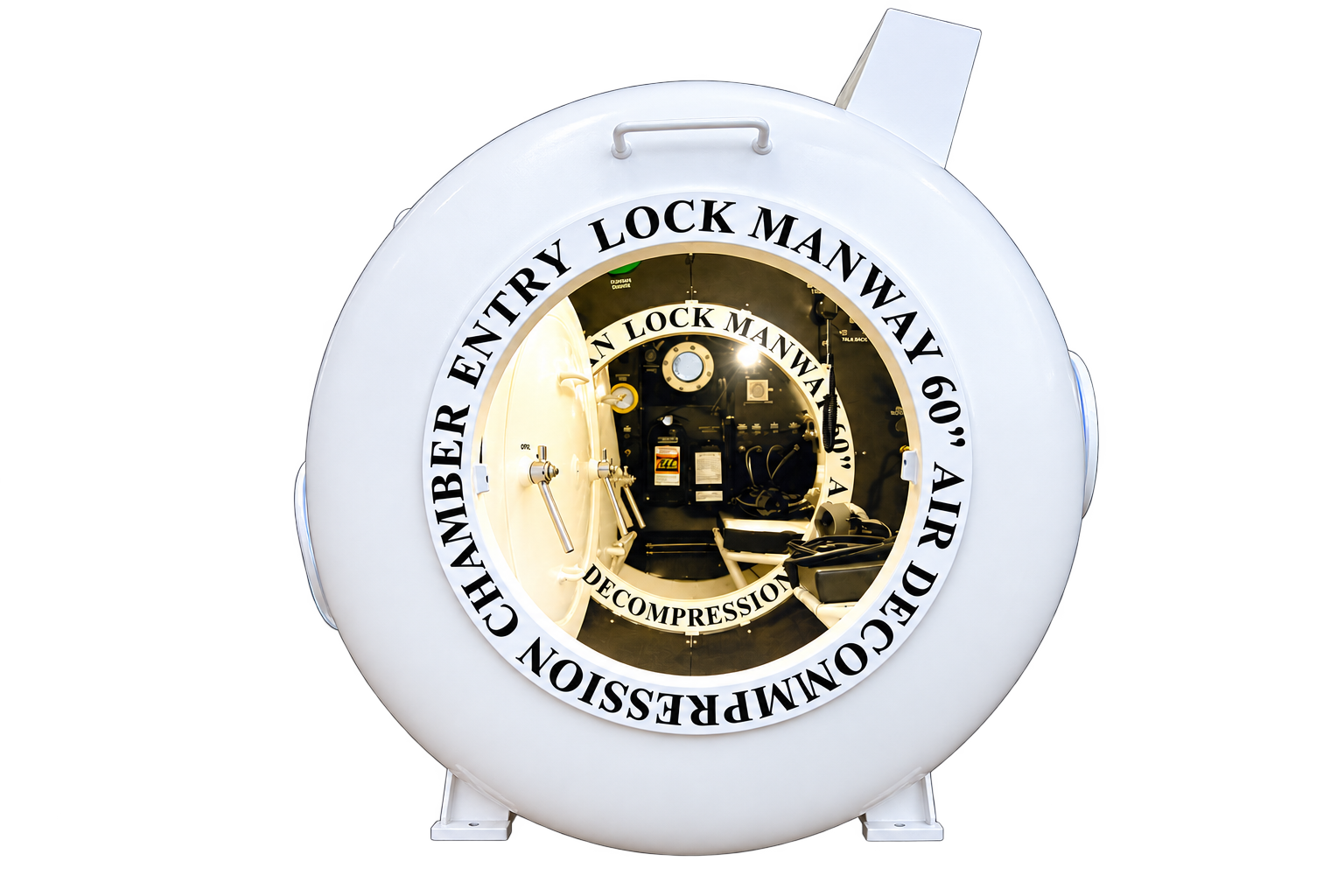

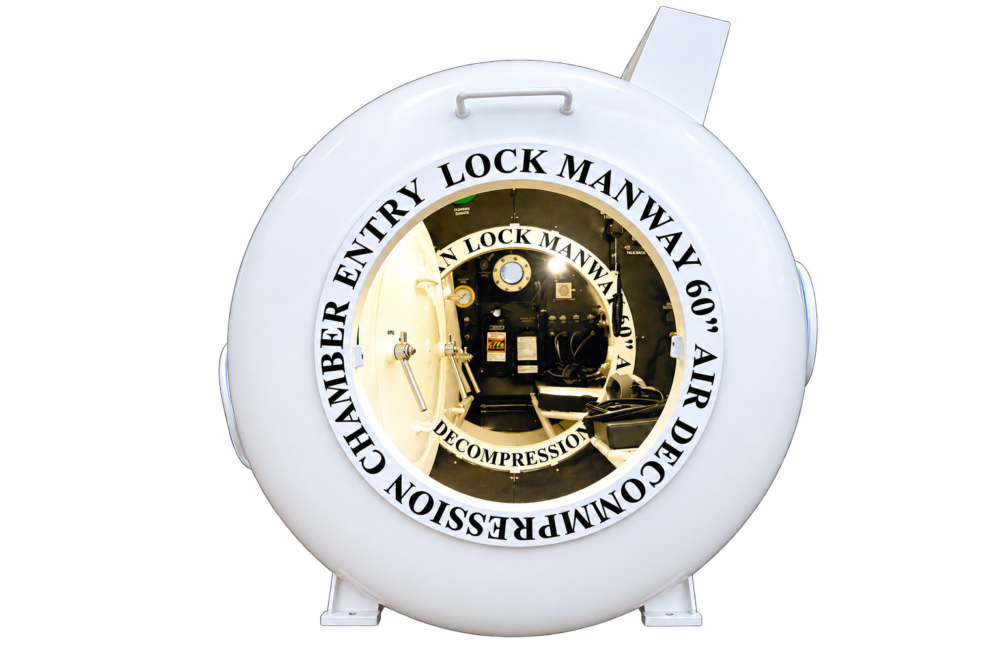

- NATO Standard Manway: A mating front manway that lines up with transfer or docking hardware already in service, so fleets can keep equipment interchangeable.
- Three Fitted Viewports: Lets the deck crew see straight into the chamber, on top of whatever the camera feed shows.

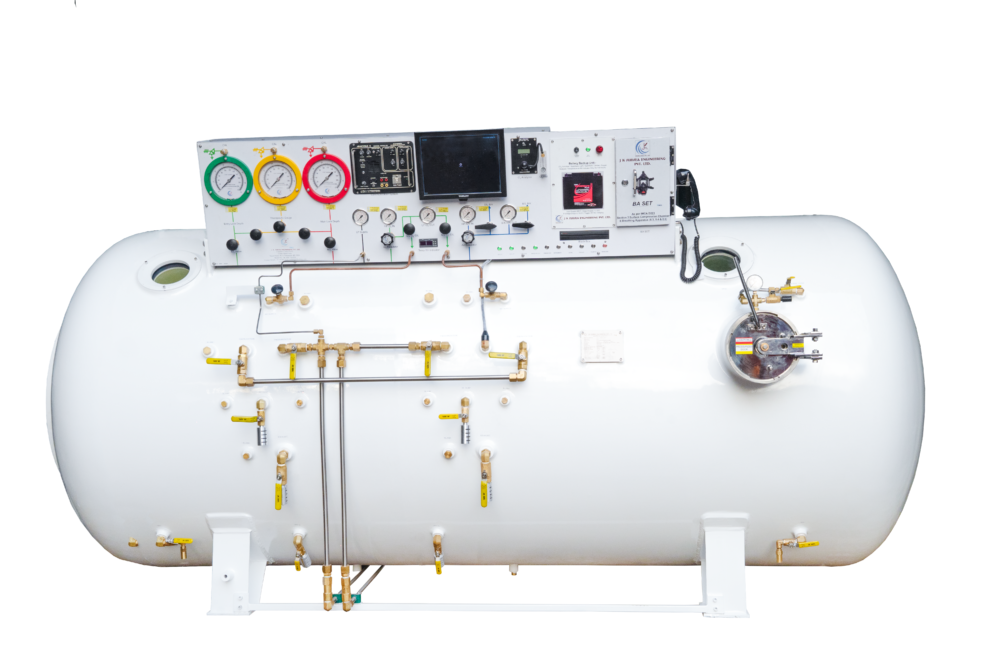

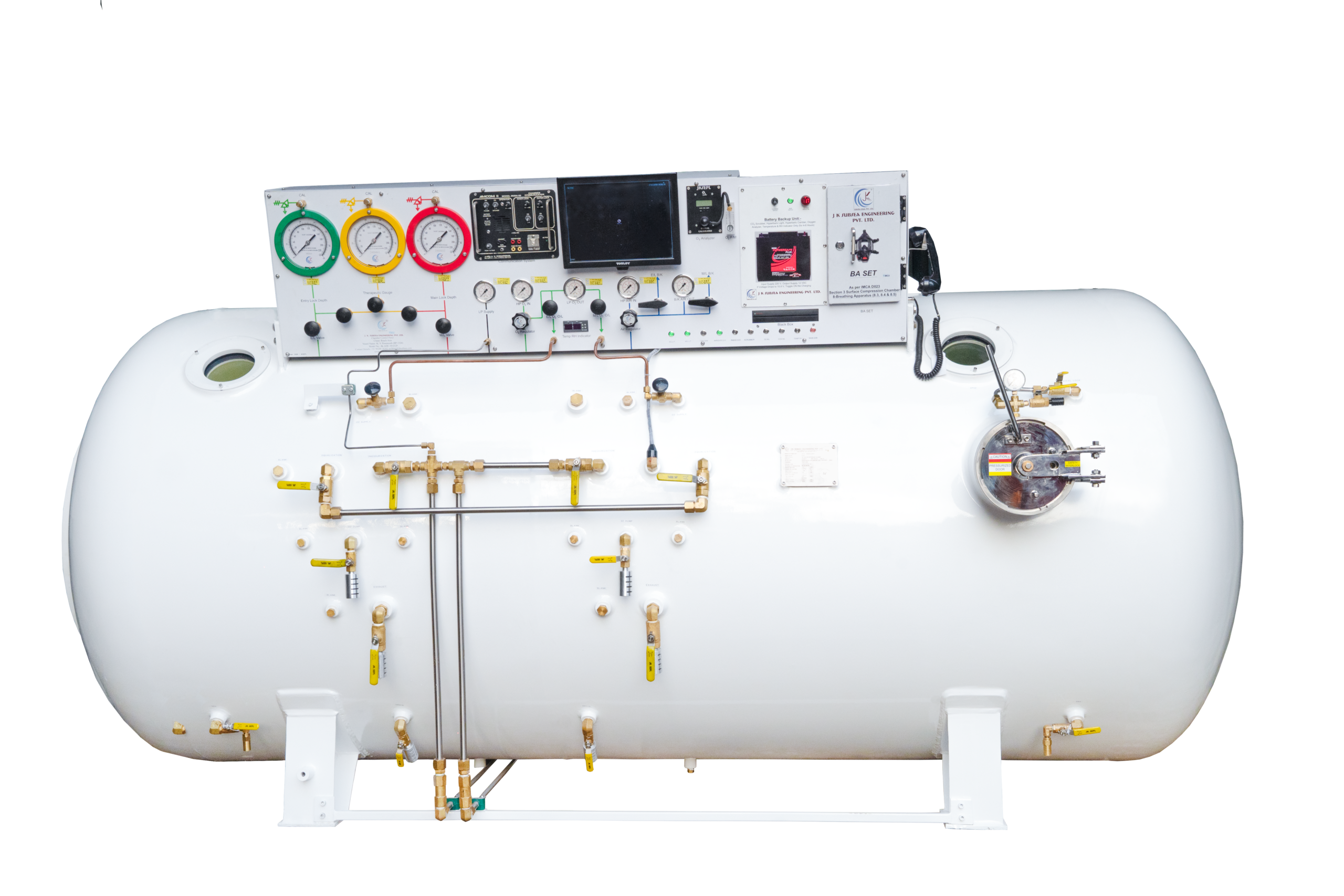

- Panel Fixed at Eye Level: The control panel sits on the shell where the operator stands, putting entry, main, and therapeutic gauge plus the oxygen, CO2, and environmental analysers within easy reach.
- Continuous Environmental Readout: Temperature and humidity are tracked in real time, and a DVR keeps a running record of chamber conditions.
- 8 Hours of Backup Power: lf mains power goes down, the panel keeps working on battery, so nobody loses monitoring or communication mid operation.
- Emergency Breathing Set on Hand: A supervisor BA set stays at the panel for use if something goes wrong.
- Everyrthing Fitted Before lt Ships: Scrubber, light, camera, BIBS, extinguisher,
mattresses, speaker, caisson gauge, and hygrometer, all installed and ready, not sold separately.
Applications of Containerized ADC with Diving Air Panel
Our twin-lock decompression chamber supports critical diving safety and treatment operations across commercial and offshore environments.
Ships and Barges With Open Deck Space: No need to build or ship a container when the vessel already has room to mount the chamber directly.
Shore Based Dive Training and Support Sites: Drops into an existing indoor space at a training centre or fixed facility.
Platforms Wanting a Permanent Fixture: Bolts straight onto a platform deck for long term use rather than a removable unit.
Fleets Running Compatible Transfer Gear: The NATO manway keeps this chamber usable alongside other units built to the same standard.
Sites Upgrading an Old Chamber: Swap the chamber and panel while leaving the surrounding structure or room untouched.
Technical Specifications of the Air Decompression Chamber Shell (JK-ADC-CCP)
Chamber Shell
| Specification | Detail |
|---|---|
| Model No. | JK-ADC-CCP |
| Design Code | ASME Sec VIII Div. 1 & PVHO-1 (2022) |
| Max Allowable Working Pressure | 7.5 Bar |
| Hydrotest Pressure | 11.25 Bar |
| Volume | 6 cum |
| Design Temperature | -10 deg C (Min) to +100 deg C (Max) |
| Content Fluid | Compressed Air |
| Service | Human Occupancy |
| Material of Construction | SA 516 Gr. 70 |
| Chamber Shell Dimension | 60 inch Diameter |
| Occupancy | 2 Persons (Entry Lock), 4 Persons (Main Lock) |
| Mounting Type | Saddle Mount |
| Front Manway | Mating type (NATO) |
| Viewports | 3 Nos |
What's Inside the Chamber
- CO2 Scrubber (JK-CO2S-ALPHA): A fan pulls CO2 through a soda lime bed, keeping the air inside breathable for around 4 hours.
- Hyperbaric Light (JK-HYL-300M): Sits in both locks so the interior stays lit through the entire pressurisation cycle.
- Hyperbaric Camera (JK-HYC-300M): Positioned in both locks, sending video straight to the control panel screen.
- Talk Back Operator (JK-TBS): A speaker in the main lock so the occupant can hear the operator without a handset.
- Caisson Gauge (6″ dial, 0-7 MSW): Reads out the internal depth or pressure at a glance.
- Built In Breathing System, BIBS (Amron 350M): Routes oxygen from the supply line directly to whoever is inside the chamber.
- Hyperbaric Fire Extinguisher (JK-HYF-6.7L): Built specifically to work under the pressure conditions inside the chamber.
- Fire Retardant Mattresses: Cover the bunks in both locks to cut down fire risk.
- Hygrometer with Thermometer: Keeps a constant reading of humidity and temperature inside the chamber.
Certifications & Standards for the Air Decompression Chamber Shell Manufacturer
Fabrication follows ASME Section VIII Division 1 and ASME PVHO-1 (2022), checked against DNV TPI approved drawings, with a DNV stamped nameplate applied once an independent inspector signs off on the build. On the design side, the chamber and panel follow IMCA D018 for how diving plant should be examined and tested, and IMCA D023 for how a surface oriented air diving system should be laid out.
IMCA D018
Certified
IMCA D023
Certified
TPL
Appproved
Why Choose J. K. Subsea Engineering as Your Air Decompression Chamber Manufacturer
- Skip the Container Cost: If you’ve already got deck space or a room, you’re not paying for housing you don’t need.
- Third Party Signed Off, Not Self Certified: The DNV stamped nameplate means someone outside J. K. Subsea checked the build.
- Works With What You Already Have: NATO manway keeps it usable alongside existing transfer equipment.
- Nothing Left to Source Later: Every internal system arrives fitted, tested, and ready to run.
- Stays Powered When the Mains Doesn’t: 8 hours of battery runtime on the control panel.
- Support After Delivery: Technical backup available to offshore and subsea clients wherever they operate.
- More Than Just Chambers: J. K. Subsea also builds containerized decompression chambers, diving machinery containers, single basket LARS, diver air panels, and diving fittings and valves.
