10ft Diving Machinery Container
JK Subsea Engineering Pvt. Ltd. is a trusted Diving Machinery Container manufacturer and supplier, building the 10ft Diving Machinery Container, Model No. JK10FMC, a standard ISO container modified to house compressor and gas bank equipment for commercial diving operations. Keeping the compressors and gas storage in their own dedicated container keeps the dive control panel free of noise and heat, so dive teams get a reliable, self-contained air supply wherever the job takes them.
What's Included in the Machinery Container
A 10ft diving machinery container is a purpose-built container that houses the compressors, gas storage, filtration, and distribution equipment needed to supply breathing air during commercial diving operations. Keeping this machinery in its own dedicated container separates compressor noise, heat, and maintenance work from the dive control panel, while making the whole setup easy to transport, install, and mobilize between offshore projects. Compared to a standard diving setup, where compressors and cylinders sit loose on deck or share space with the dive panel, a 10ft machinery container keeps everything organized, protected, and ready to move as one unit.
Key Features of 10ft Diving Machinery Container
Our 10ft machinery container is built to keep compressors, gas storage, and distribution equipment running reliably during offshore diving operations.
- ISO & DNV Compliant Build: A standard ISO container, modified for diving use, fitted with a DNV 2.7-1 padeye on top for safe lifting.
- IMCA Compliant Design: Built to IMCA D018 and D023 guidelines for diving plant and surface-oriented air systems.
- Fire-Retardant Insulation: Container walls are fitted with 50 mm thick fire-retardant polyurethane insulation sandwich panels.
- HP & LP Compressor Setup: Houses 1 HP compressor and 2 LP compressors.
- 3-Stage Breathing Air Filtration: A brass manifold filter system with control valve and non-return valve delivers clean air through 6 outlet connections, 3 for the diving panel, 1 for the recompression chamber, and 2 as emergency backup.

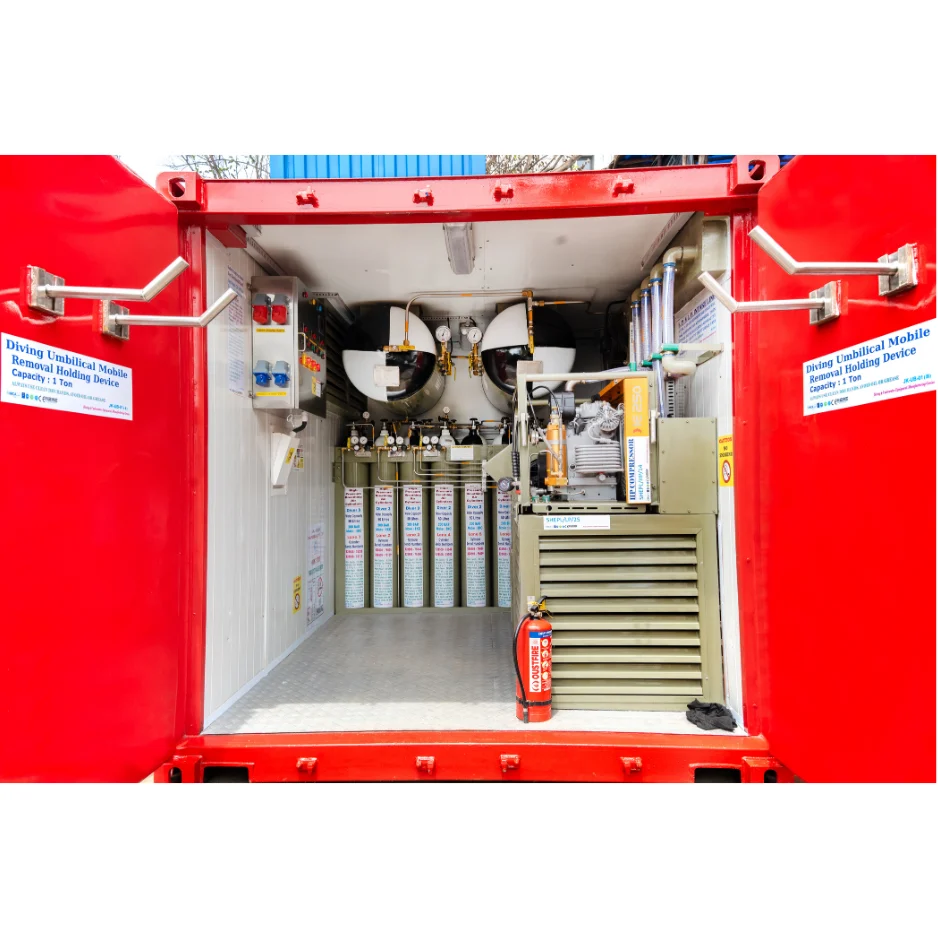

- Ceiling-Mounted Storage Reservoir: Two 400-litre SS316L pressure reservoir tanks, connected in series, supply the diving panel and recompression chamber.
- Umbilical Frame with SS316 Hooks: Mounted on the container door to hold 150 m of 4-core diving umbilical on either side, keeping weight evenly balanced.
- 27-Cylinder Breathing Air Quad: A high-pressure gas distribution panel with cylinders coded separately for each diver, plus emergency capacity for twin lock chamber pressurization.
Applications of 10ft Diving Machinery Container
Our 10ft diving machinery container supports breathing air supply across a range of offshore and commercial diving operations.
Offshore Diving Support Vessels: Supplies compressed breathing air to dive panels and chambers aboard support vessels.
Offshore Oil & Gas Projects: Keeps commercial divers supplied with air during platform inspection and maintenance work.
Recompression & Decompression Chamber Support: Feeds air directly into recompression chambers alongside the diving panel.
Multi-Vessel Support Operations: A dedicated machinery container can be moved between vessels or barges as diving projects shift locations.
Marine Construction & Subsea Projects: Provides a self-contained, mobile air supply solution for offshore construction diving.
Emergency & Backup Air Supply: Backup outlet connections and reserve cylinder capacity support emergency response scenarios.
Remote & Short-Term Offshore Deployments: The container’s self-contained design makes it easy to mobilize for temporary or remote dive sites without permanent infrastructure.
Technical Specifications of 10ft Diving Machinery Container
Our JK10FMC is a 10ft standard ISO container modified for diving use, IMCA D018 and D023 compliant, with a DNV 2.7-1 padeye on top and 50 mm fire-retardant polyurethane insulation walls.
LP Breathing Air Compressor
| Specification | Detail |
|---|---|
| Make | Air Tech |
| Model | AT-115T & AT-171-T2 |
| Outlet Pressure | 14 Bar |
| Operating Pressure | 8.5 Bar |
| Free Air Delivery | 37.4 cfm |
| Motor Power | 15 HP |
| Drive Type | V-Belt |
| Electrical Condition | 415V / 3 Phase / 50-60 Hz |
| Regulation | Constant Speed Control (CFC) |
| Motor Type | IP55 Protection (TEFC) |
HP Breathing Air Compressor
| Specification | Detail |
|---|---|
| Make | Bauer Mariner Series |
| Model No. | Mariner 250 Bauer-IE250-TE |
| Frame | Corrosive resistant crash frame |
| Purification | Bauer P31 Purification System |
| Charging Rate | 320 lpm |
| Pressure | 320 and 420 Bar |
| For full details, download the complete technical data sheet. | |
Certifications & Standards for 10ft Diving Machinery Container Manufacturer
Our 10ft diving machinery container is designed to meet internationally recognized commercial diving standards. This includes IMCA D018 for the examination, testing, and certification of diving plant and systems, and IMCA D023 for surface-oriented air system design. The container is also built on a standard ISO approved frame, modified with a DNV 2.7-1 rated padeye for safe offshore lifting.
IMCA D018
Certified
IMCA D023
Certified
Why Choose JK Subsea Engineering as Your Diving Machinery Container Manufacturer
JK Subsea Engineering Pvt. Ltd. is a trusted 10Ft machinery container manufacturer and supplier, building containerized compressor and gas storage systems for commercial diving operations.
Experienced Manufacturer: Proven engineering behind every diving machinery container we build.
ISO & DNV Compliant Build: Standard ISO container construction modified with a DNV 2.7-1 rated lifting padeye.
Dual Compressor Redundancy: HP and LP compressor setup with backup outlet connections for reliable air supply.
Balanced Umbilical Storage: SS316 hook frame keeps umbilical weight evenly distributed on either side of the container.
Fire-Safe Construction: Fire-retardant insulation panels built into the container walls.
Strong After-Sales Support: Ongoing technical support for offshore and subsea clients worldwide.
Wide Product Range: We also manufacture and supply SRP containers, single basket LARS, diver air panels, and diving fittings & valves, supplied worldwide.
