DIVING EQUIPMENTS
Air Decompression Chamber with Remote Control Panel
J. K. Subsea Engineering Pvt. Ltd. is an air decompression chamber manufacturer and supplier for commercial diving and offshore operations. Our Air Decompression Chamber with Remote Control Panel, Model No. JK-ADC-RCP, is a 60 inch twin lock chamber with an entry lock, a main lock and a stainless steel medical lock. Its control panel sits in a separate room, so the operator runs the chamber from a safe distance instead of standing beside the pressure vessel. The shell is built to ASME Section VIII Division 1 and PVHO-1 (2022), with DNV TPI approved drawings and a DNV stamped nameplate, and the design follows IMCA D018 and D023.
What is the Air Decompression Chamber with Remote Control Panel?
An air decompression chamber lets divers come back to surface pressure in steps after an air dive, and it is the main safety unit on a diving job. On most chambers the control panel is fitted on top of the shell. On the JK-ADC-RCP, the remote operated control panel is placed in a separate room, away from the chamber.
That change matters to the operator. You control the chamber from a safe distance, you spend less time near the high pressure zone, and the layout is easier to work with over a long shift. The panel carries depth gauges, a therapeutic gauge, a gas analyser, a regulator, a communicator, a monitoring screen and a DVR, and a battery backup keeps it running for up to 8 hours if the power fails.

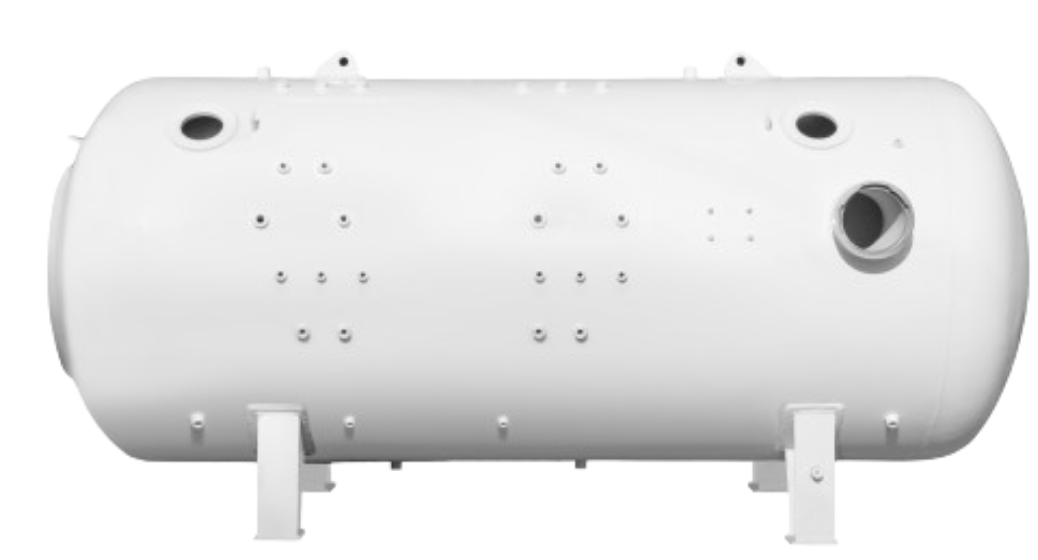

The chamber itself is a 60 inch (1500 mm) twin lock shell that holds 2 persons in the entry lock and 4 in the main lock. It has 3 viewports, a NATO type mating front manway, and saddle mounts. Inside you will find a CO₂ scrubber, lights and a camera in both locks, a built in breathing system, a hyperbaric fire extinguisher, fire retardant mattresses and more. As an air decompression chamber manufacturer and supplier, we build the shell to ASME PVHO rules with TPI approved drawings, and the data sheet lists every fitting by model number.
Key Features of the Air Decompression Chamber with Remote Control Panel
- Remote Control Panel: The panel sits in a separate room, so the operator controls the chamber from a safe distance.
- 60 Inch Twin Lock Shell: An entry lock and a main lock let an attendant enter while a diver stays under pressure.
- Stainless Steel Medical Lock: Passes food, medicine and small items in and out without a full depressurisation.
- ASME PVHO Rated Build: Constructed to ASME Sec VIII Div. 1 and PVHO-1 (2022) in SA 516 Gr. 70 material.
- TPI Approved Drawings: Fabricated to DNV TPI approved drawings, with a DNV stamped nameplate on the shell.
- NATO Type Front Manway: A mating type manway gives a secure entry into the main lock.
- Camera and Light in Both Locks: A hyperbaric light and camera fitted in the entry lock and the main lock, with the picture on the control panel.
- Built In Breathing System: An Amron BIBS supplies oxygen to the person inside from the oxygen line.
- Battery Backup for Up to 8 Hours: Keeps the control panel running through a power cut.
- Monitoring and Recording: A high definition monitoring system with a temperature and humidity indicator and a DVR that stores recorded data.
Applications of the Air Decompression Chamber with Remote Control Panel
Air Diving Decompression: A deck chamber for decompressing divers after air dives.
Recompression Treatment: The therapeutic gauge and twin lock design allow an attendant to enter while a diver stays under pressure.
Dive Support Vessels: A chamber that sits on deck, with the operator working from a separate control room.
Onshore Diving Bases: Suits shore based diving centres that have a room for the control panel.
Safer Operator Position: Keeps the operator away from the pressure vessel during chamber runs.
Fleet Upgrades: A step up for contractors who want the control panel moved off the chamber shell.
Technical Specifications of the Air Decompression Chamber with Remote Control Panel (JK-ADC-RCP)
Air Decompression Chamber — Technical Specifications
| Specification | Detail |
|---|---|
| Equipment | Air Decompression Chamber |
| Model No. | JK-ADC-RCP |
| Design Code | ASME Sec VIII Div. 1 & PVHO-1 (2022) |
| Approval | DNV TPI approved drawings, DNV stamped nameplate |
| IMCA Guidelines | IMCA D018 and IMCA D023 |
| Max Allowable Working Pressure | 10 Bar |
| Hydrotest Pressure | 15 Bar |
| Volume | 6 cum |
| Design Temperature | −10°C (min) to +100°C (max) |
| Content Fluid | Compressed air |
| Service | Human occupancy |
| Material of Construction | SA 516 Gr. 70 |
| Chamber Shell Dimension | 60 inch (1500 mm) diameter |
| Chamber Type | Twin lock, with entry lock, main lock and stainless steel medical lock |
| Occupancy | 2 persons (entry lock), 4 persons (main lock) |
| Mounting Type | Saddle mount |
| Front Manway | Mating type (NATO) |
| Viewports | 3 |
| Control Panel Location | Remote, in a separate room |
| Entry Lock Depth Gauge | 6" dial, 0 to 70 MSW, dual scale (FSW and MSW) |
| Main Lock Depth Gauge | 6" dial, 0 to 70 MSW, dual scale (FSW and MSW) |
| Therapeutic Gauge | 8" dial, 0 to 70 MSW, dual scale (FSW and MSW) |
| Gas Analyser | Panel mount CO₂ and O₂ multigas analyser, with flowmeter |
| Oxygen Supply Gauge | 4" pressure gauge, dual scale (psi and kg/cm²) |
| Supply Gauges | 4" pressure gauge, dual scale (psi and kg/cm²), for low pressure and high pressure lines |
| Chamber Communicator | Twin lock chamber communicator, Amron 2820A-02 |
| HP Air and Oxygen Regulator | Tescom, Model 44-5213-241v |
| Monitoring System | High definition monitoring system, temperature and relative humidity indicator, DVR |
| Backup Power | Battery backup system, up to 8 hours |
| Emergency Equipment | Supervisor breathing apparatus set |
What’s Inside the Air Decompression Chamber with Remote Control Panel
CO₂ Scrubber (JK-CO2S-ALPHA): A fan pulls CO₂ from the air through a soda lime absorbent, keeping the air breathable for up to 4 hours.
Hyperbaric Light (JK-HYL-300M): Fitted in both the entry lock and the main lock to light the interior during pressurisation.
Hyperbaric Camera (JK-HYC-300M): Fitted in both locks, with the picture shown on the control panel monitor.
Built In Breathing System, BIBS (Amron 350M): Lets the person inside breathe oxygen from the oxygen line.
Hyperbaric Fire Extinguisher (JK-HYF-6.7L): A 6.7 litre fire suppression unit made for pressurised chambers.
Fire Retardant Mattresses: Fitted on the bunks in the entry lock and the main lock to cut fire risk.
Talk Back Operator (JK-TBS): An internal speaker in the main lock, so the occupants hear the control panel operator.
Caisson Gauge (6″ dial, 0 to 7 MSW): Shows the internal depth or pressure inside the chamber.
Hygrometer with Thermometer: Shows the humidity (%RH) and temperature (°C) inside the chamber.
Additional Features and Provision
Remote Panel Accessories: The control panel also carries a diver communicator and a sound powered telephone, as shown in the data sheet.
Backup Power: The panel battery backup keeps the system running for up to 8 hours in a power failure.
Emergency Breathing Set: A supervisor breathing apparatus set is supplied for use in any emergency.
Certifications & Standards for the Air Decompression Chamber Manufacturer
The chamber shell is built to ASME Section VIII Division 1 and PVHO-1 (2022), in line with ASME PVHO, IMCA and diving standards. It is made to DNV TPI approved drawings and carries a DNV stamped nameplate on the shell. The system follows IMCA D018, the code of practice for the initial and periodic examination, testing and certification of diving plant and systems, and IMCA D023, the guideline for surface oriented air diving systems. As an air decompression chamber manufacturer and supplier, J. K. Subsea Engineering Pvt. Ltd. applies the same guidelines across its decompression chamber range.
IMCA D018
Certified
IMCA D037
Certified
Why Choose J. K. Subsea Engineering for the Air Decompression Chamber with Remote Control Panel?
Operator Stays Clear of the Chamber: The remote panel keeps the operator away from the pressure vessel.
Full ASME PVHO Shell: Built to ASME Sec VIII Div. 1 and PVHO-1 (2022).
TPI Verified: DNV TPI approved drawings and a stamped nameplate on the pressure vessel.
Complete Fit Out: Camera and light in both locks, a CO₂ scrubber, a BIBS, a hyperbaric fire extinguisher and a medical lock.
Good Panel Instruments: Larger gauges, a Tescom regulator, a gas analyser, a monitoring screen and a DVR.
Power Backup: Up to 8 hours of battery backup on the control panel.
Strong After-Sales Support: Ongoing technical help for offshore and subsea clients worldwide.
Wide Product Range: We also make optimised air decompression chambers, diving machinery containers, scuba replacement packages, cylinder quads, diver air panels, and diving fittings and valves, supplied worldwide.
