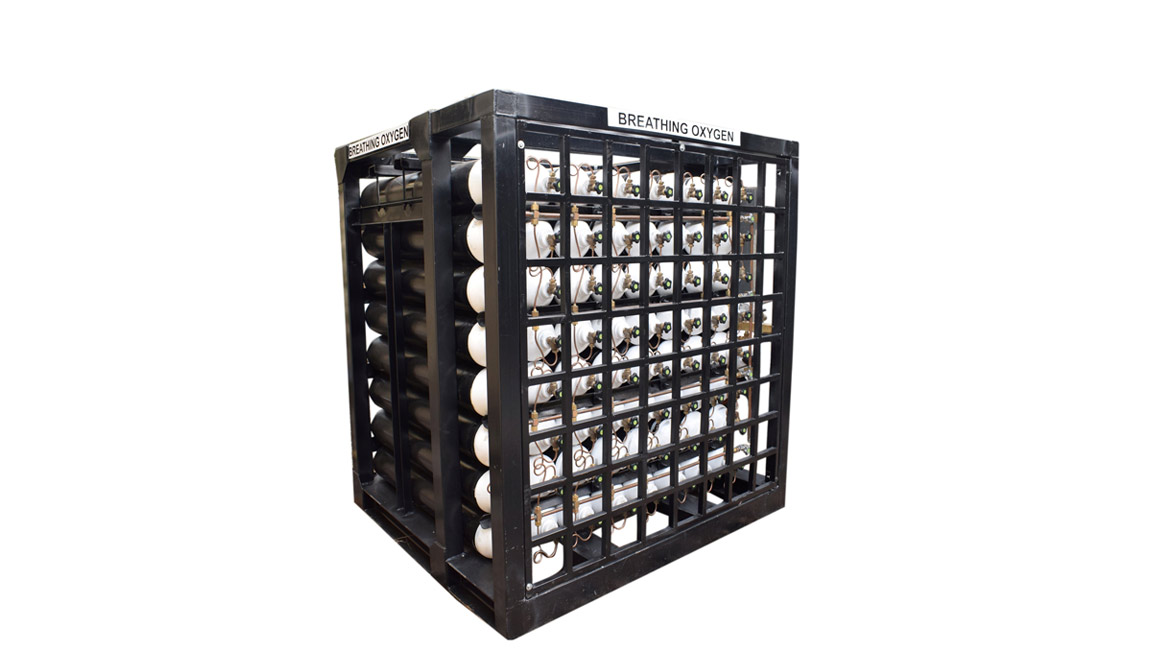

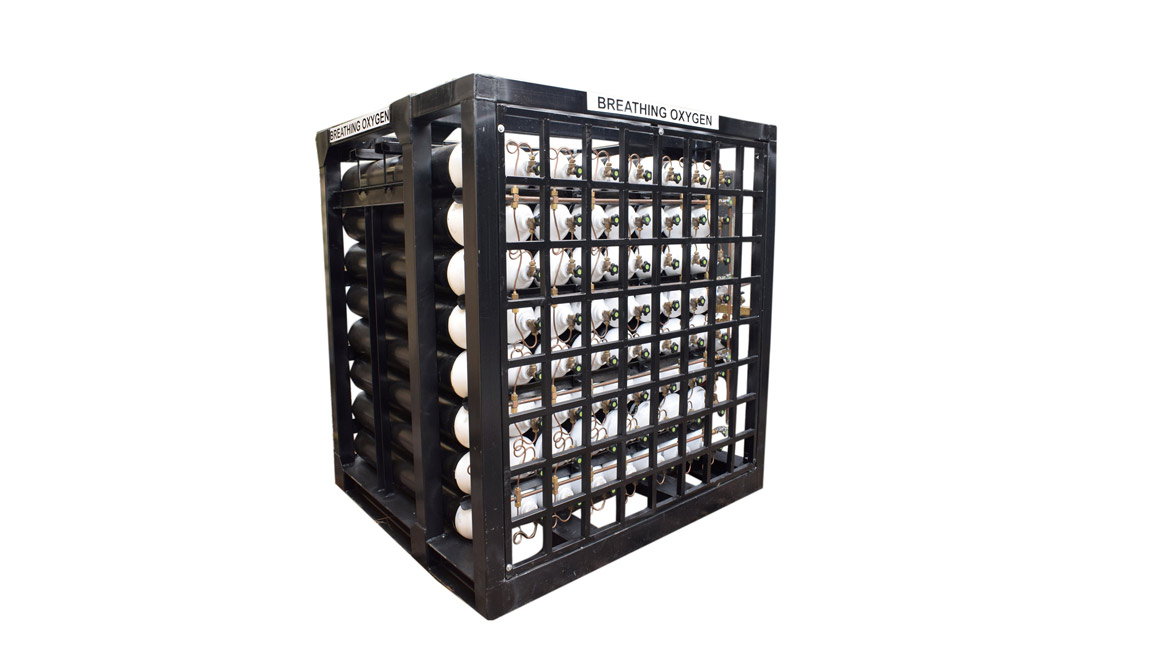

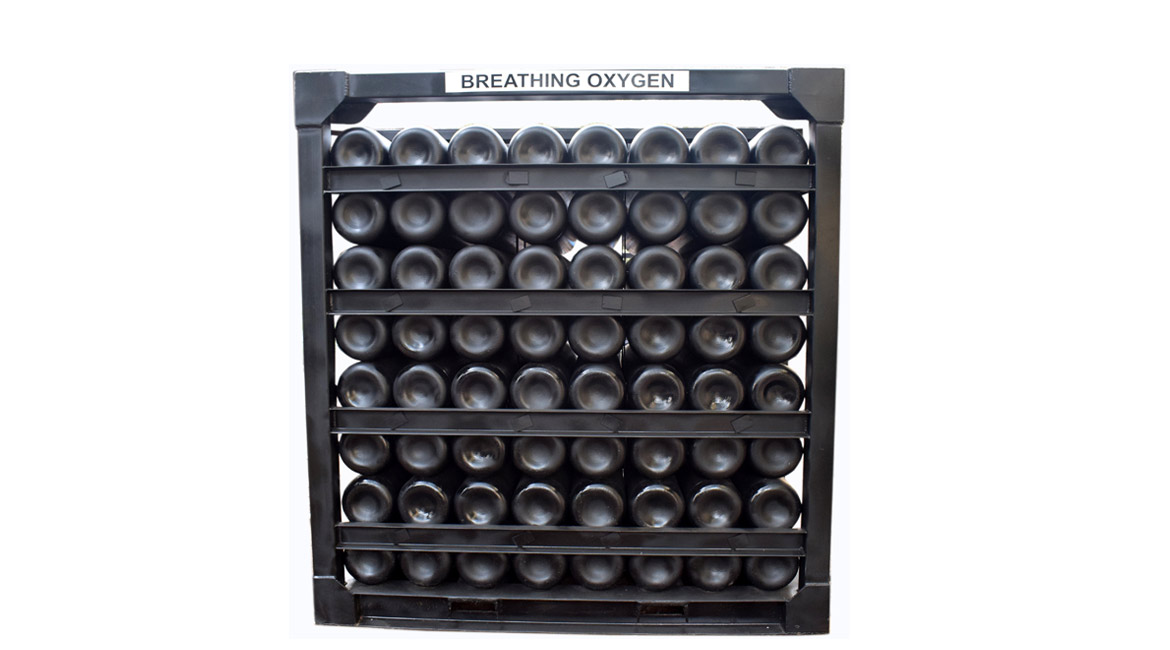

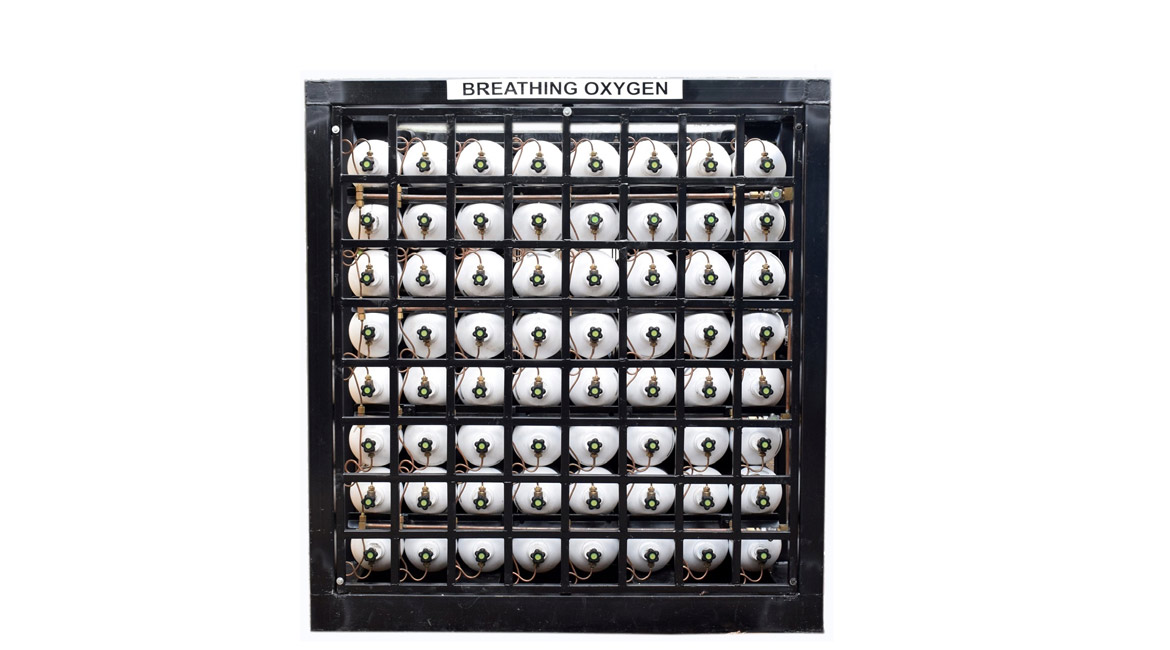

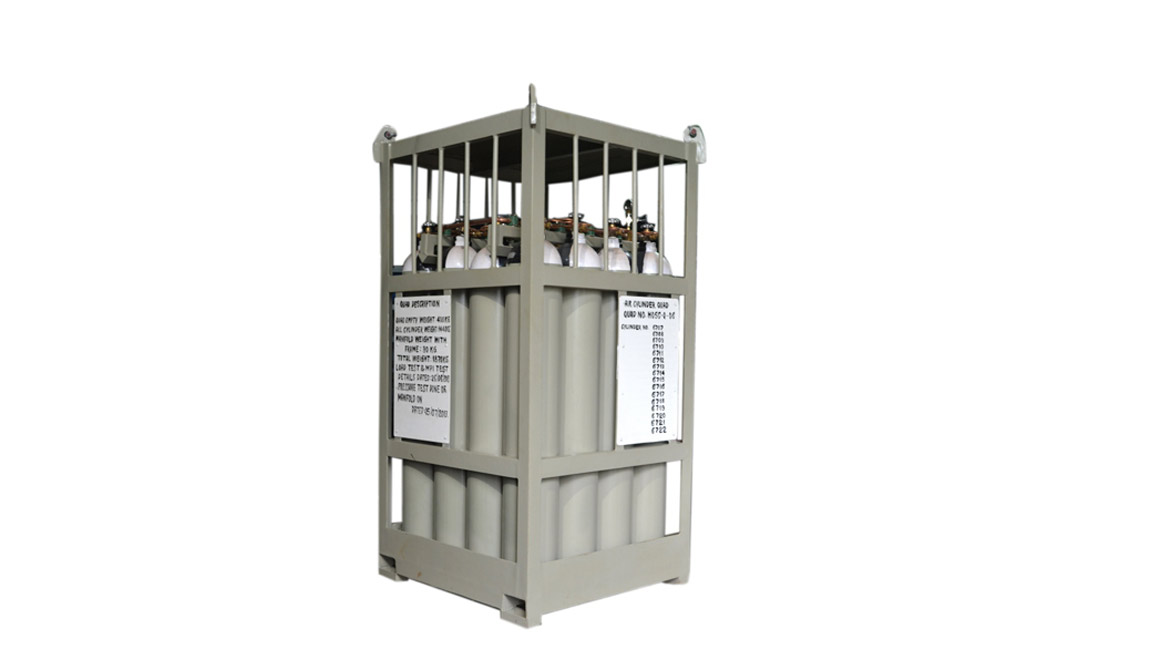

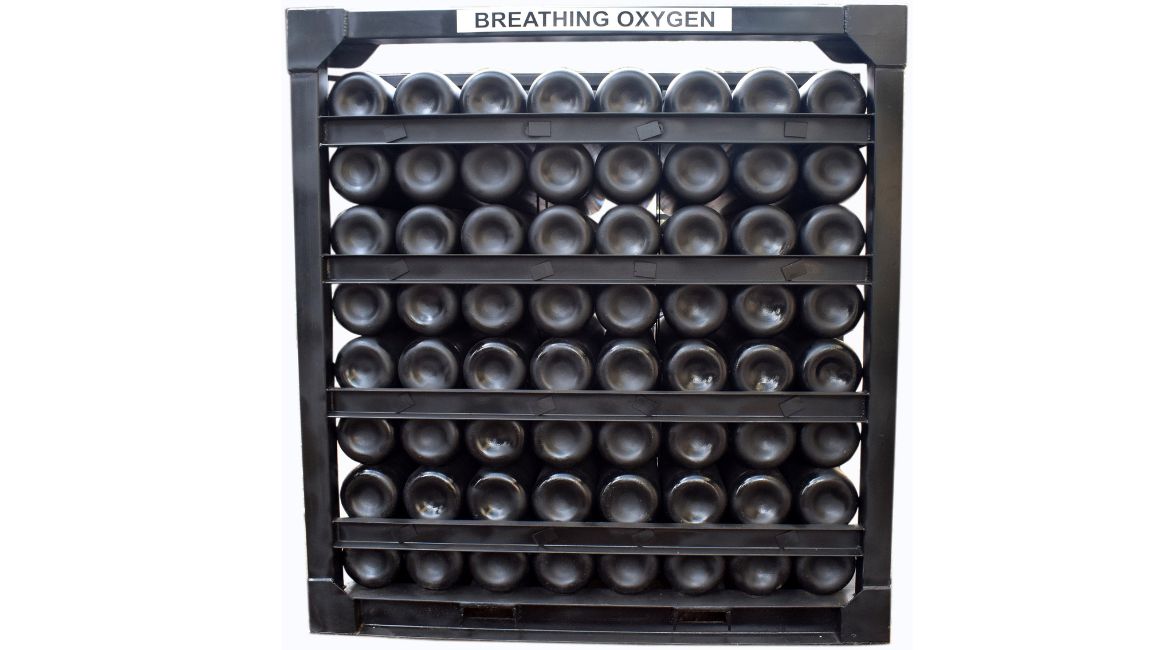

Introduction
-
Model No:
- For 4 Cylinder --- JK04CQ
- For 6 Cylinder --- JK06CQ
- For 8 Cylinder --- JK08CQ
- For 16 Cylinder --- JK16CQ
- For 32 Cylinder --- JK32CQ
- For 56 Cylinder --- JK56CQ
- For 64 Cylinder --- JK64CQ
- Design compliant with IMCA D018 & D023
- Cylinder Quad tailored for gases such as Oxygen, Breathing Air, Helium, Nitrogen & Hydrogen.
-
Technical Specification for Cylinder
- Water Capacity: 50 liters
- Working pressure: 204 kgf/cm²
- Hydrostatic Test Pressure: 340 kgf/cm²
- Nominal length: 1450 mm approx. without Cap & without Valve
- Outside Diameter: 232 mm
- Empty Cylinder Weight: 54 kg approx.
- Bend Test: 180° without Cracking
