Introduction

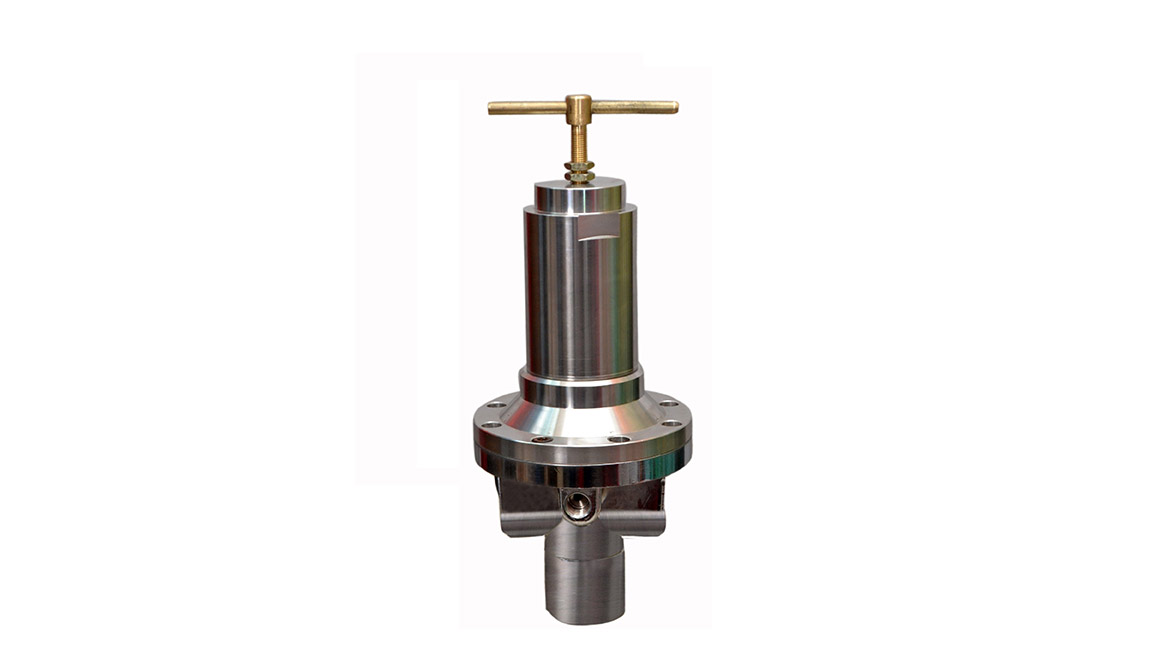

JKSEPL produces various types of High Flow Regulators tailored to customer needs.
Our Regulators were meticulously crafted for precision tasks, utilizing Premium materials such as stainless steel.
Each regulator featured Inlet and Outlet pressure gauges compliant with EN837-1 standards (As per Client Requirements).
For High-Pressure applications were equipped with High-Pressure Brass Pistons.
Technical Specification:
- Product Type: (High-Flow Regulator)
- Material: Brass
- Grade: IS 319 Gr. II
- Maximum Inlet Pressure: 200 Bar
- Maximum Outlet Pressure: 40 Bar
- Locking Pressure: 20 Bar
- Flow Capacity: Cv: 0.02
- Temperature Range: -30 to 74 °C
- Maximum Operating Torque: 30 in-lbs or 3.4 Nm
- Port: 4 Port as per IS Standard
- Standard: IS 6901:2009
- Laboratory and Gas Equipment System
- Specialty & Industrial Gas Cylinder Regulator
- Chromatography Flame Detector Fuel Supply
- Compact in size
- Designed to minimize contamination and provide accurate regulations of any corrosive, noncorrosive, or Toxic gas.
Application
Features & Benefits
Model No.
| High Pressure High Flow (HPHF): | JK-07-A |
| Low Pressure High Flow (LPHF): | JK-07-B |
