Introduction

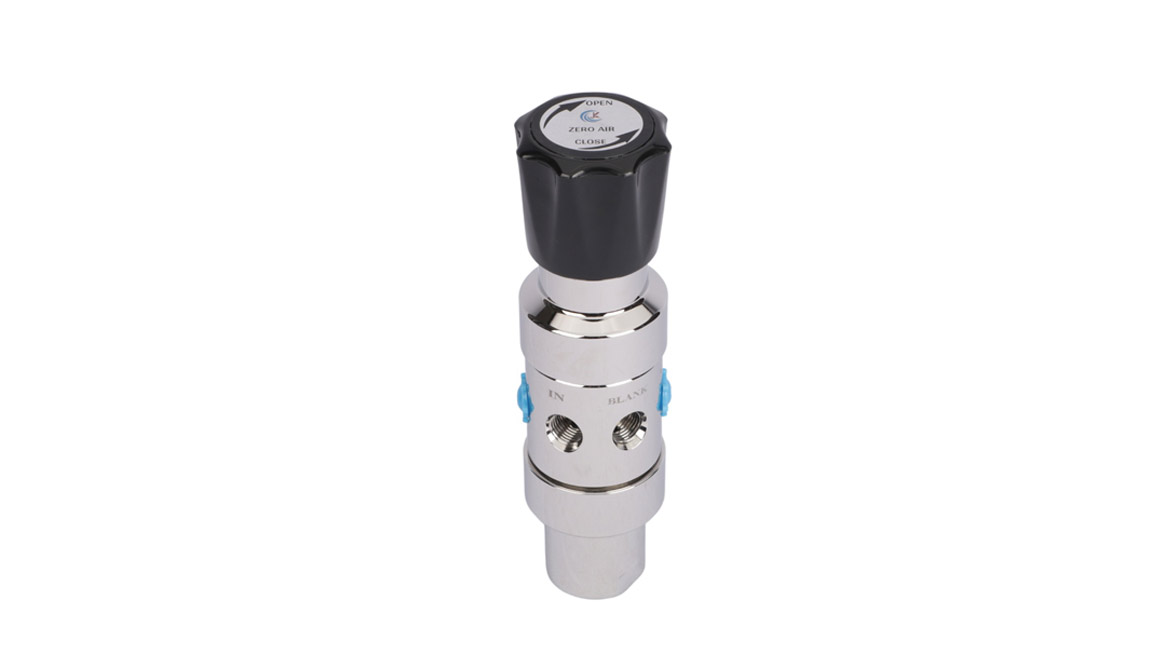

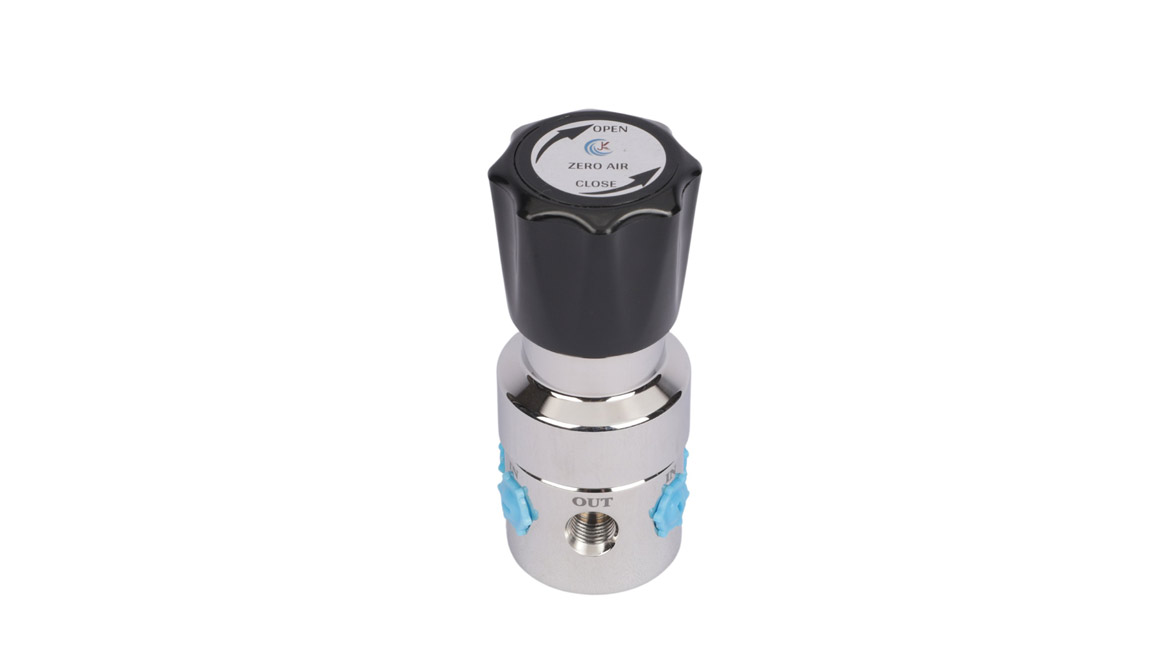

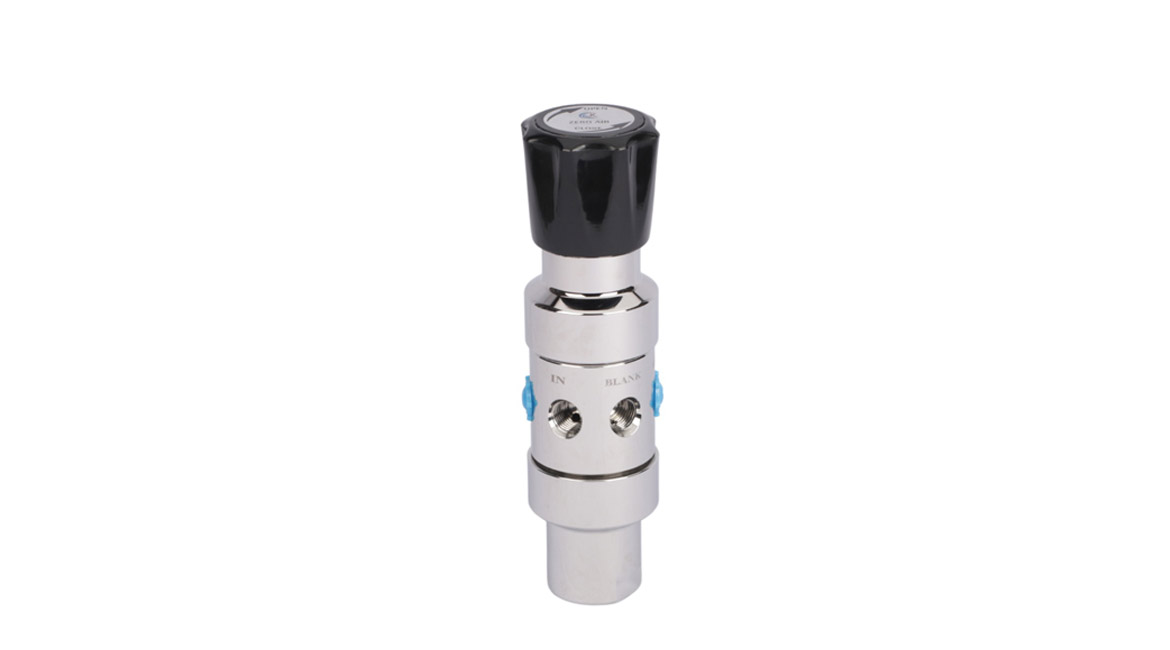

JKSEPLproduces various types of Mini High Flow Regulators tailored to customer needs.
Our regulators were meticulously crafted for precision tasks, utilizing Premium materials such as Stainless Steel and High Grade Brass.
Viton & Stainless Steel diaphragms were predominantly utilized in our regulators.
Technical Specification:
- Product Type: Regulator (Mini High Flow Regulator)
- Material: Stainless Steel & Brass
- Grade:SS 316 / Grade II
- Maximum Inlet Pressure: 15 Bar
- Maximum Outlet Pressure: 0-8 Bar
- Locking Pressure: Regulating
- Flow Capacity:Cv: 0.02-0.04
- Temperature: 5 to 60°C
- Maximum Operating Torque:30 in-lbs or 3.4 Nm
- Port: 2 & 3 Port as per IS Standard
- Diaphragm Type: Viton & Stainless Steel Diaphragm
- Valve Seat: Viton
- Knob Type: Hand Operated, fine control threaded type Bonnet
- Standard: IS 6901:2009
- Laboratory and point of use gas system
- Sampling system, zero, span and calibration Analyzer gas
- Compact in size
- Designed to minimize contamination and provide accurate regulations of any corrosive, noncorrosive, or Toxic gas.
Application
Features & Benefits
Model No.
| Stainless Steel | |
|---|---|
| Air | JK-15-A |
| Oxygen | JK-15-B |
| Nitrogen Dioxide | JK-15-C |
| Helium | JK-15-D |
| Mix Gas | JK-15-E |
| Hydrogen | JK-15-F |
| Carbon Dioxide | JK-15-G |
| Nitrogen | JK-15-H |
| Argon | JK-15-I | Brass |
| Air | JK-16-A |
| Oxygen | JK-16-B |
| Nitrogen Dioxide | JK-16-C |
| Helium | JK-16-D |
| Mix Gas | JK-16-E |
| Hydrogen | JK-16-F |
| Carbon Dioxide | JK-16-G |
| Nitrogen | JK-16-H |
| Argon | JK-16-I |
